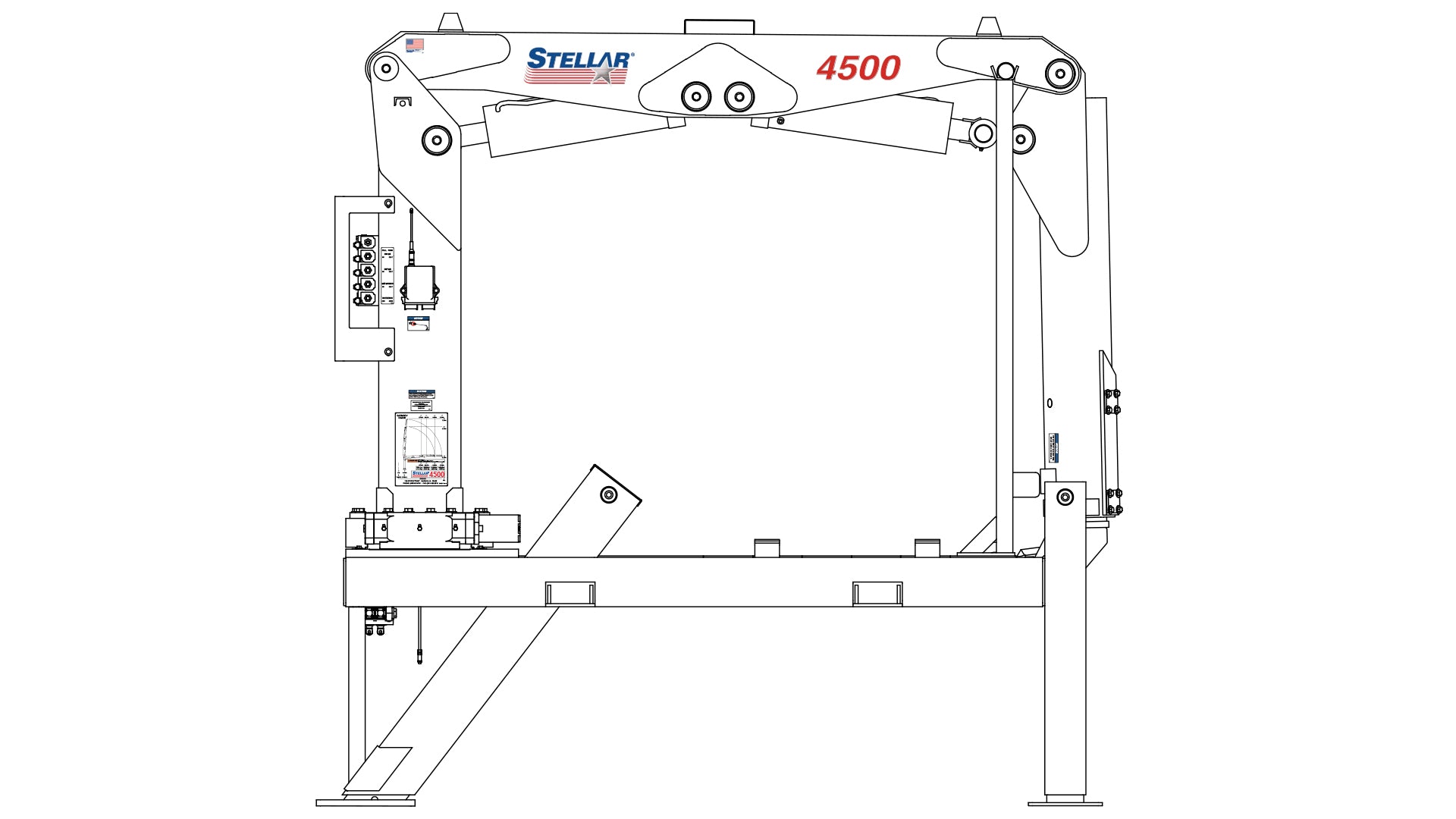

4500 Articulating Crane
4500 Articulating Crane
7,500 lb. capacity
with 17 ft. reach
Hydraulic Only
-
Crane Rating 45,000 ft-lb (6.22 tm)
-
Max Horizontal Reach 17' (5.18 m) from CL of Truck
-
Max Vertical Lift 20' (6.10 m) from Truck Frame
-
Lifting Capacity 7,500 lbs @ 9' (3,400 kg @ 2.74 m)
-
3,200 lbs. @ 17' (1,450 kg @ 5.18 m)
- Min. Rec. Chassis (GVWR) 14,500 lbs.
