ORO 21LT Tandem Axle

Name: ORO 21LT Tandem Axle
Brand: ORO Design
Availability: InStock

Built by Canadians,for Canadians.

13' Single Axle

21' Tandem

25' Off-Road Tote

2' Lube Deck Option

Mobile Lubrication Van

Custom Lubrication Skids

Standard Sea Container

Combination Fuel & Lube

Originally designed for the harsh conditions of open-pit mining, an ORO lube truck isn’t your average setup. Experience what sets us apart.

1,200 Gallons Capacity

13LS13' Mini Lube

LENGTH 156 in.
WIDTH 102 in. [Standard] or 120 in. [Off-Road]
HEIGHT 128 in.
OIL CAPACITY 4,550 Litres [1,200 Gallons]
UNDERBODY TOOLBOXES 25 in. x 25 in. x 70 in.
CAB-TO-AXLE 100 in.
MIN FRONT AXLE 12,000 lbs.
MIN REAR AXLE 21,000 lbs.
MIN GVWR 33,000 lbs.
BODY OPTIONS
Rear drop deck or straight deck for rear oil tote loading
Enclosed or open product tanks storage area
Aluminum van body walls or 12 gauge steel walls
Side opening oil tote or grease drum bays
REEL MODULE OPTIONS Rear or side access
MAN DOOR OPTIONS Rear or side access
FLUID OPTIONS Fresh oil, waste oil, anti-freeze, grease, DEF, fuel, water
POWER OPTIONS Pump & PTO, Miller® EnPak (Air of Hydraulic), VMAC Multifunction
FLUID PUMP OPTIONS Air of hydraulic pumps

1,900 Gallons Capacity

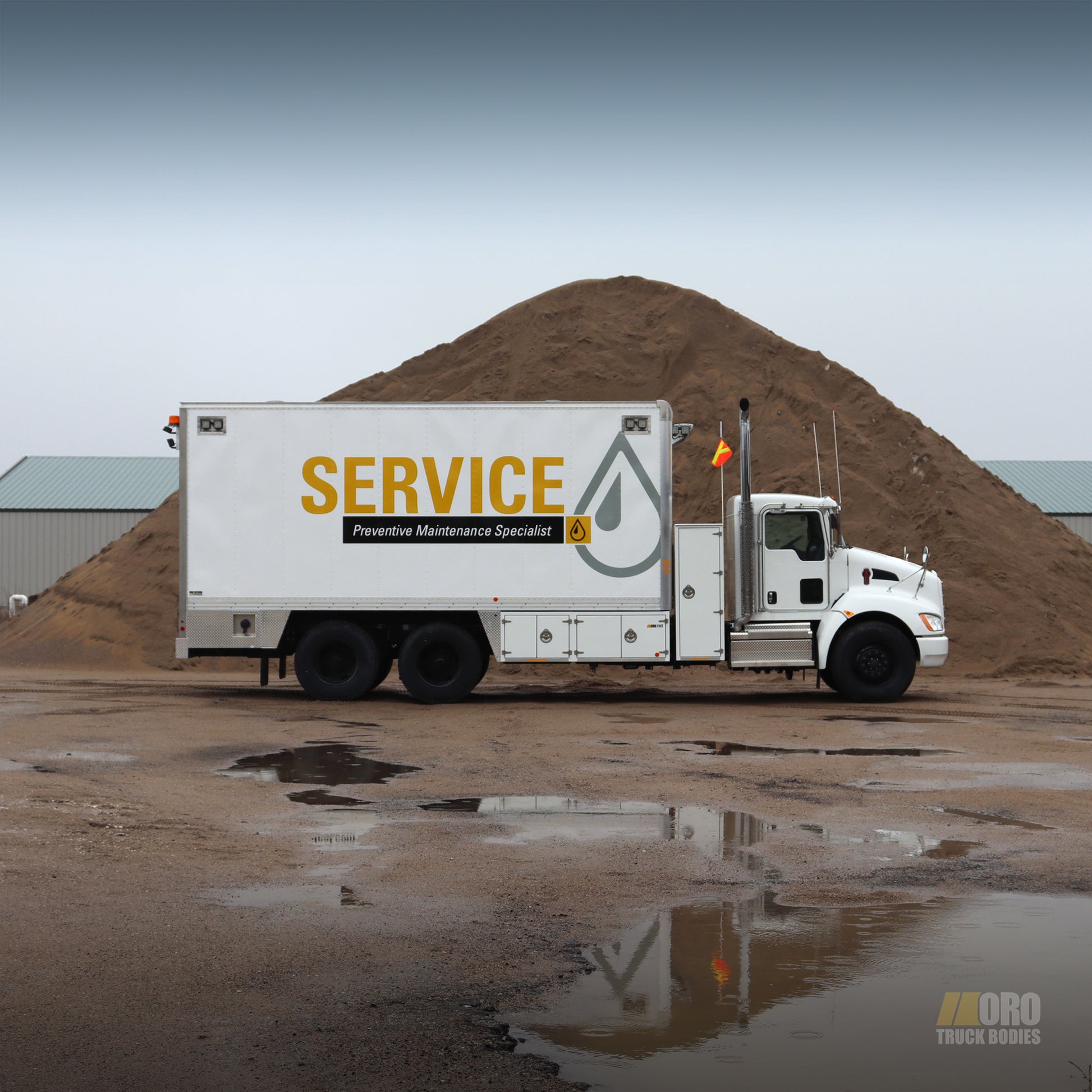

21LT21' Tandem Lube

LENGTH 248 in.
WIDTH 102 in. [Standard] or 120 in. [Off-Road]
HEIGHT 128 in.
OIL CAPACITY 7,200 Litres [1,900 Gallons]

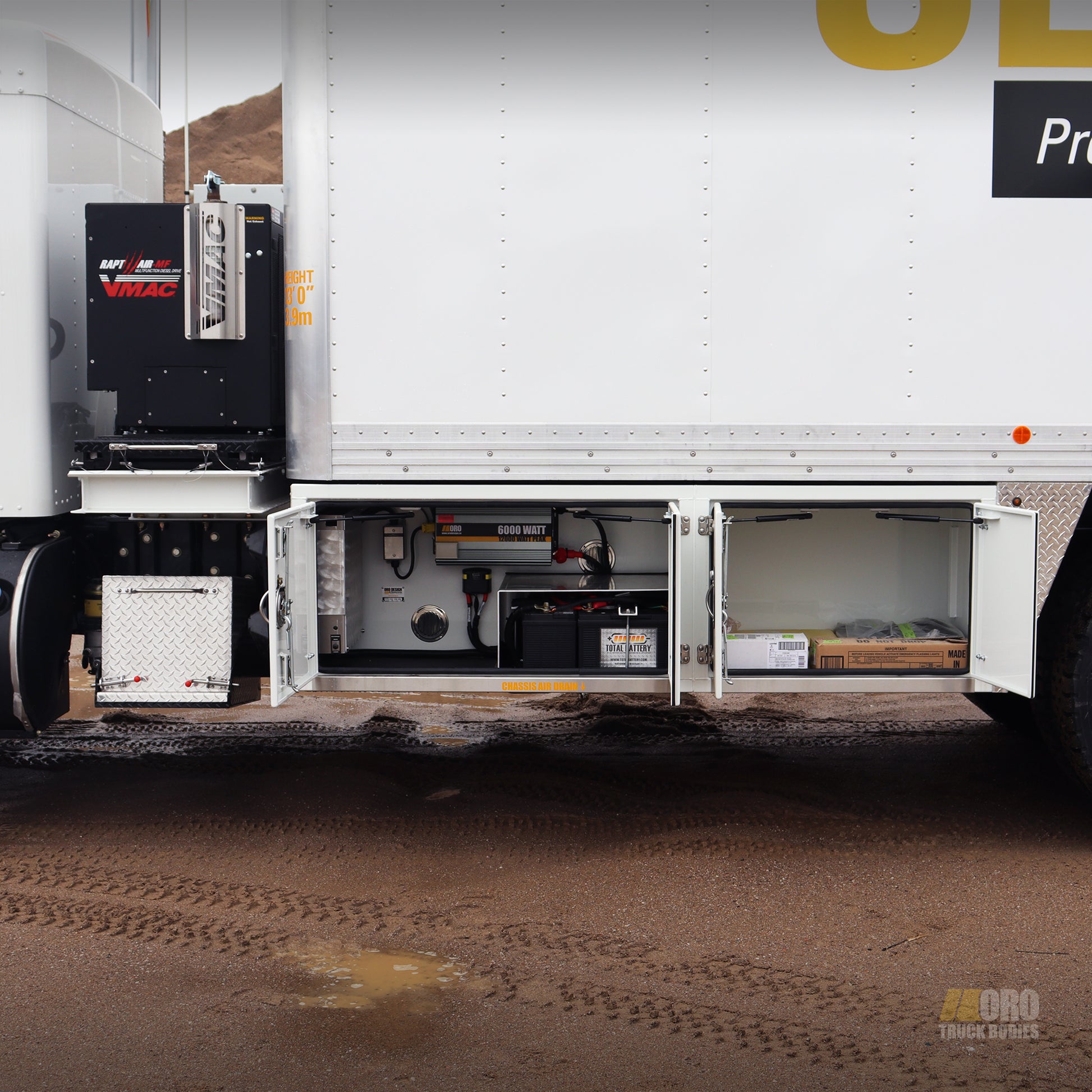

UNDERBODY TOOLBOXES 25 in. x 25 in. x 84 in.
CAB-TO-AXLE 160 in.
MIN FRONT AXLE 14,000 lbs.
MIN REAR AXLE 40,000 lbs.
MIN GVWR 54,000 lbs.
BODY OPTIONS
Rear drop deck

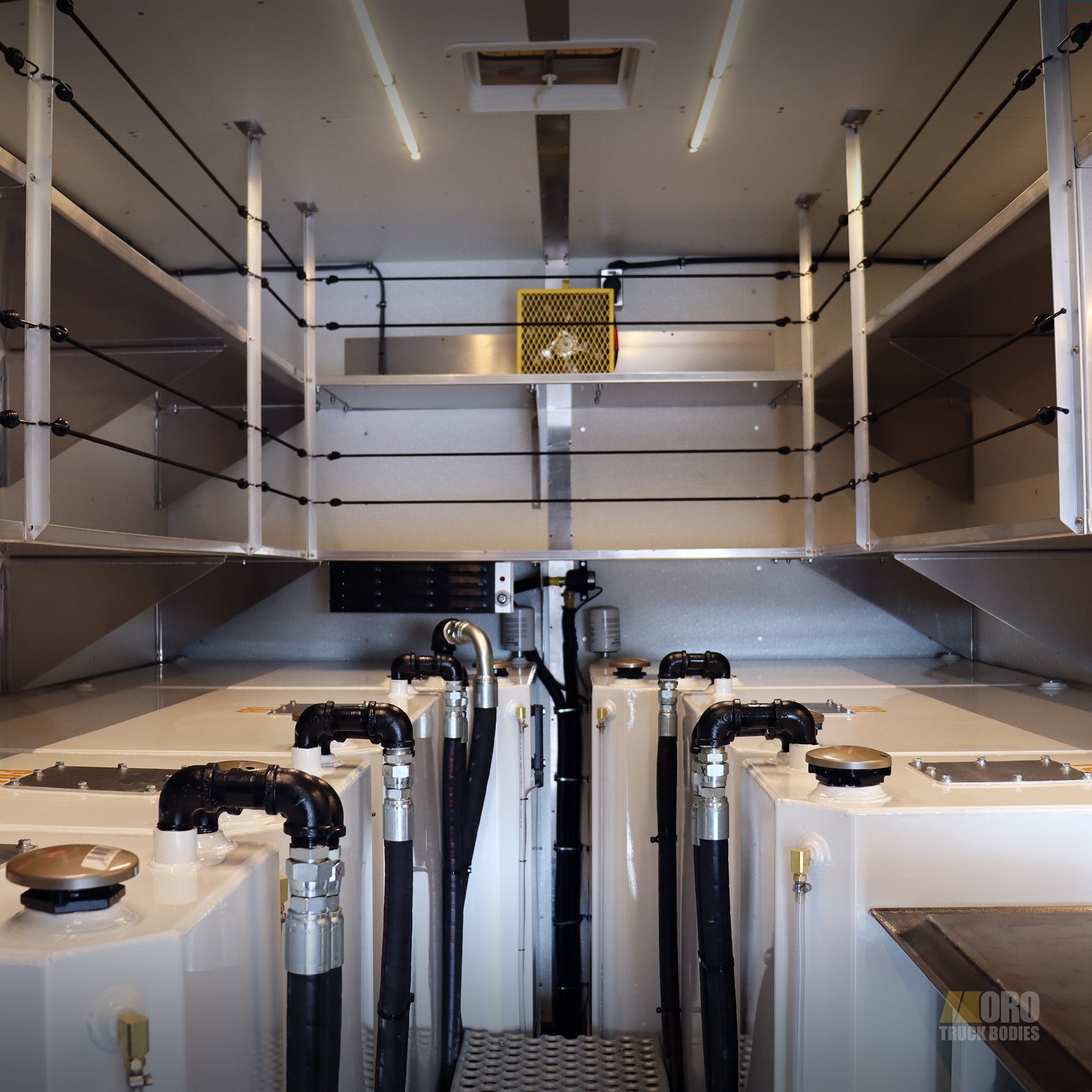

Enclosed or open product tanks storage area
Aluminum van body walls or 12 gauge steel walls
Side opening oil tote or grease drum bays

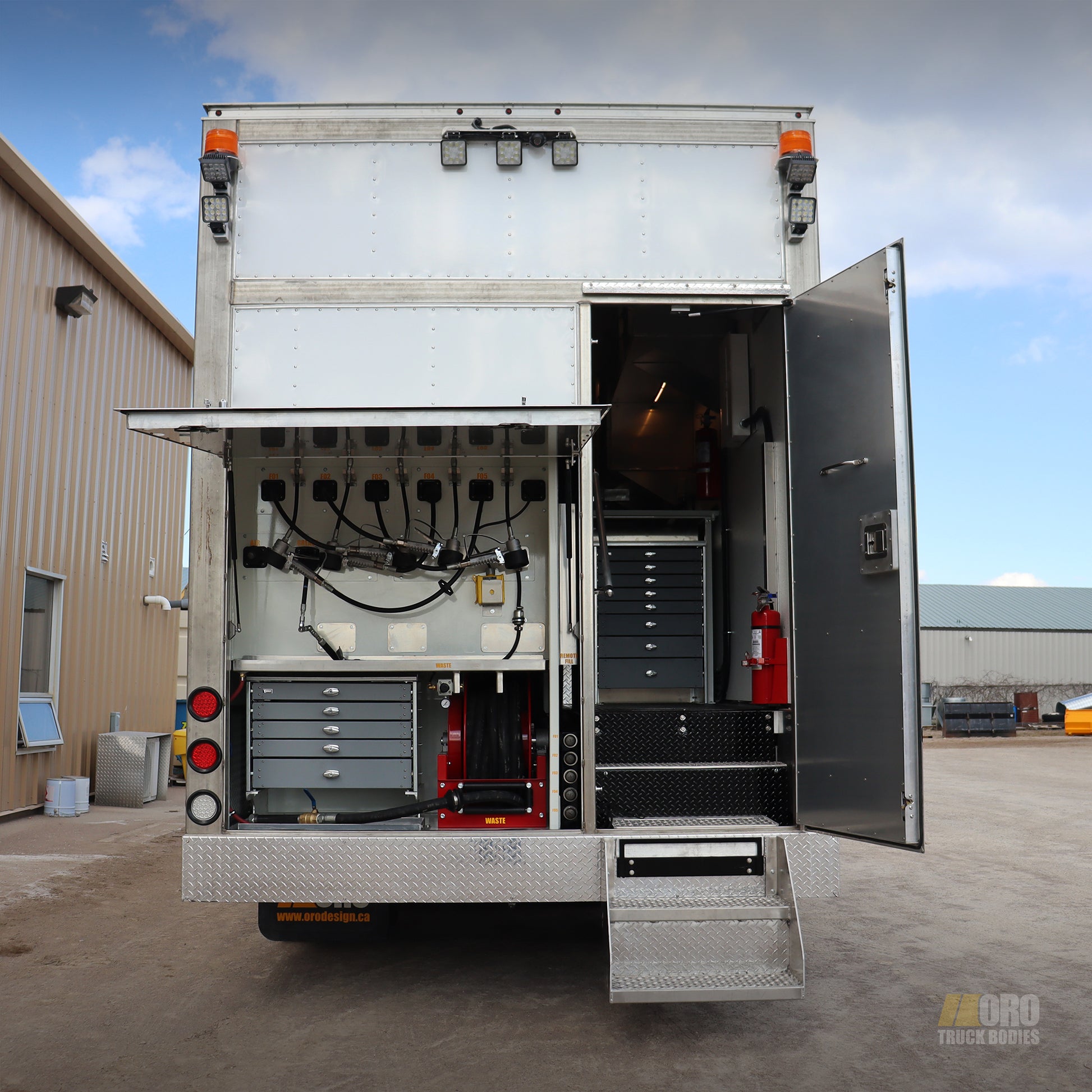

REEL MODULE OPTIONS Rear or side access
MAN DOOR OPTIONS Rear or side access
FLUID OPTIONS Fresh oil, waste oil, anti-freeze, grease, DEF, fuel, water

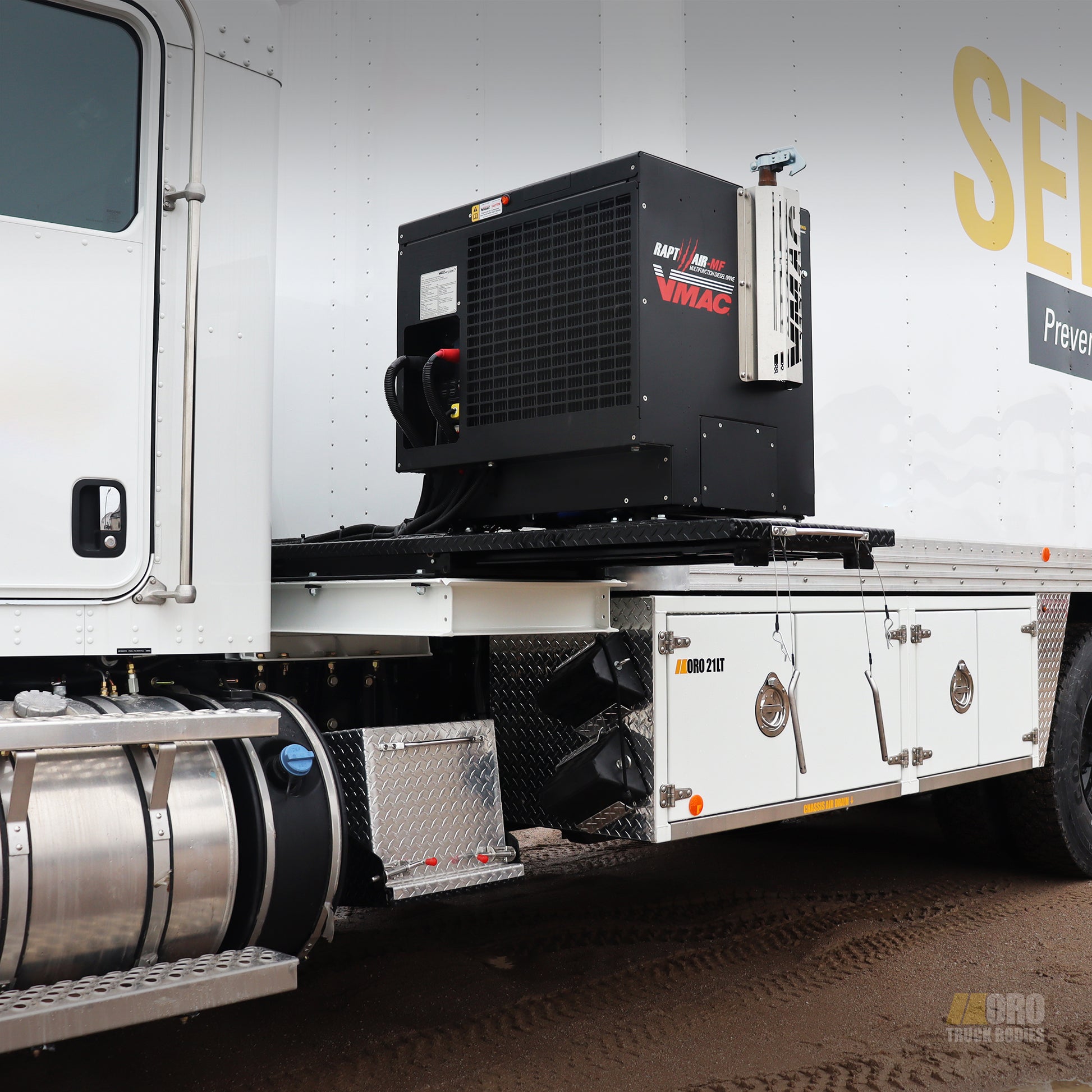

POWER OPTIONS Pump & PTO, Miller® EnPak (Air of Hydraulic), VMAC Multifunction
FLUID PUMP OPTIONS Air of hydraulic pumps
