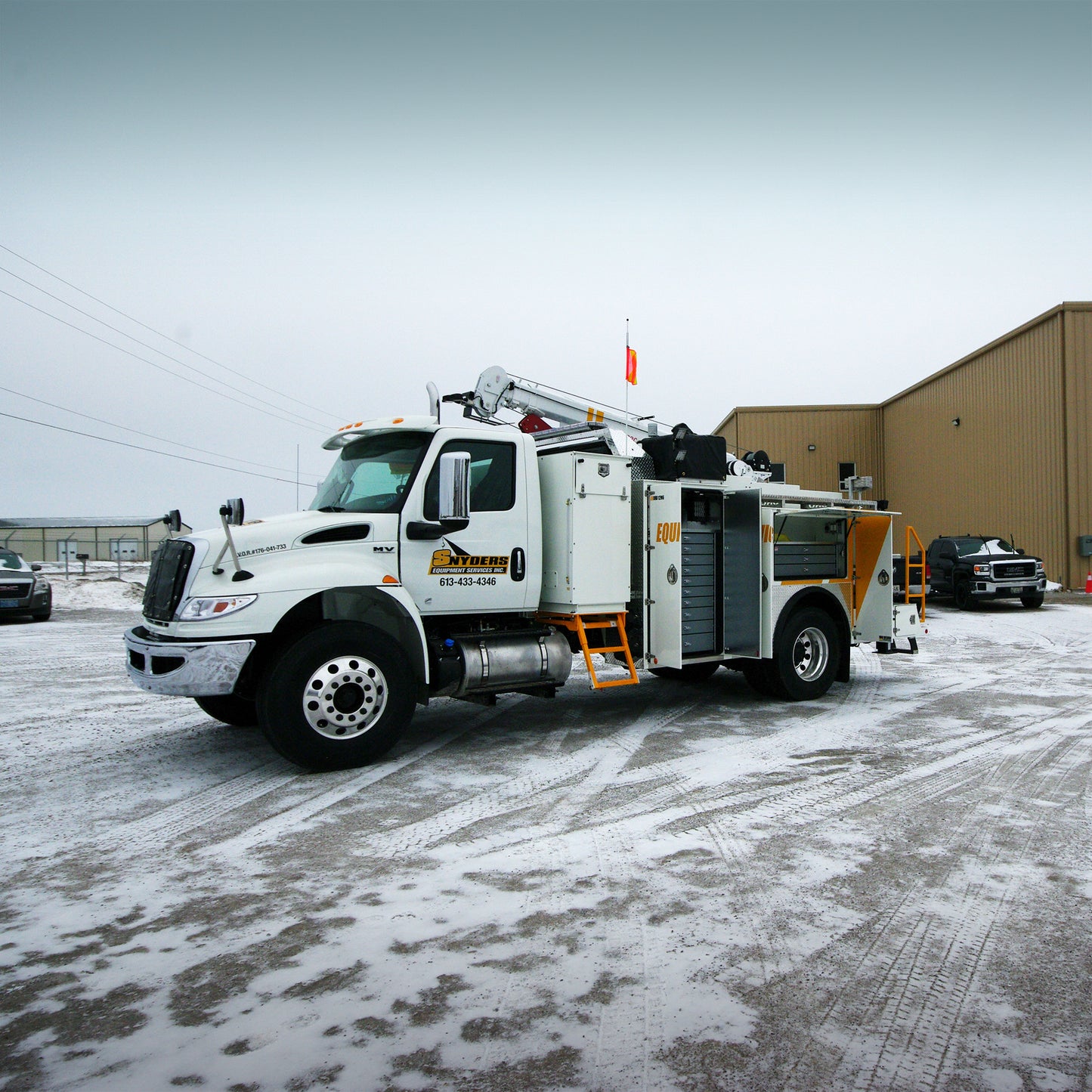

ORO 2LD Lube Deck Option
ORO 2LD Lube Deck Option
| Specification | 2LD | 3LD | 4LD |
|---|---|---|---|
| Model | 2' Lube Deck Option • M Series | 3' Lube Deck Option • M Series | 4' Lube Deck Option • M Series |
| Capacity | 750 Litres [200 Gallons] | 1,100 Litres [300 Gallons] | 1,500 Litres [400 Gallons] |
| Length | 24 in. | 36 in. | 48 in. |
| Width | 98 in. | 98 in. | 98 in. |
| Height | 68 in. | 68 in. | 68 in. |
| Oil Capacity | 750 Litres [200 Gallons] | 1,100 Litres [300 Gallons] | 1,500 Litres [400 Gallons] |
| Underbody Toolboxes | 21 in. x 24 in. x 24 in. [Under Tanks • Optional] | 21 in. x 24 in. x 24 in. [Under Tanks • Optional] | 21 in. x 24 in. x 24 in. [Under Tanks • Optional] |

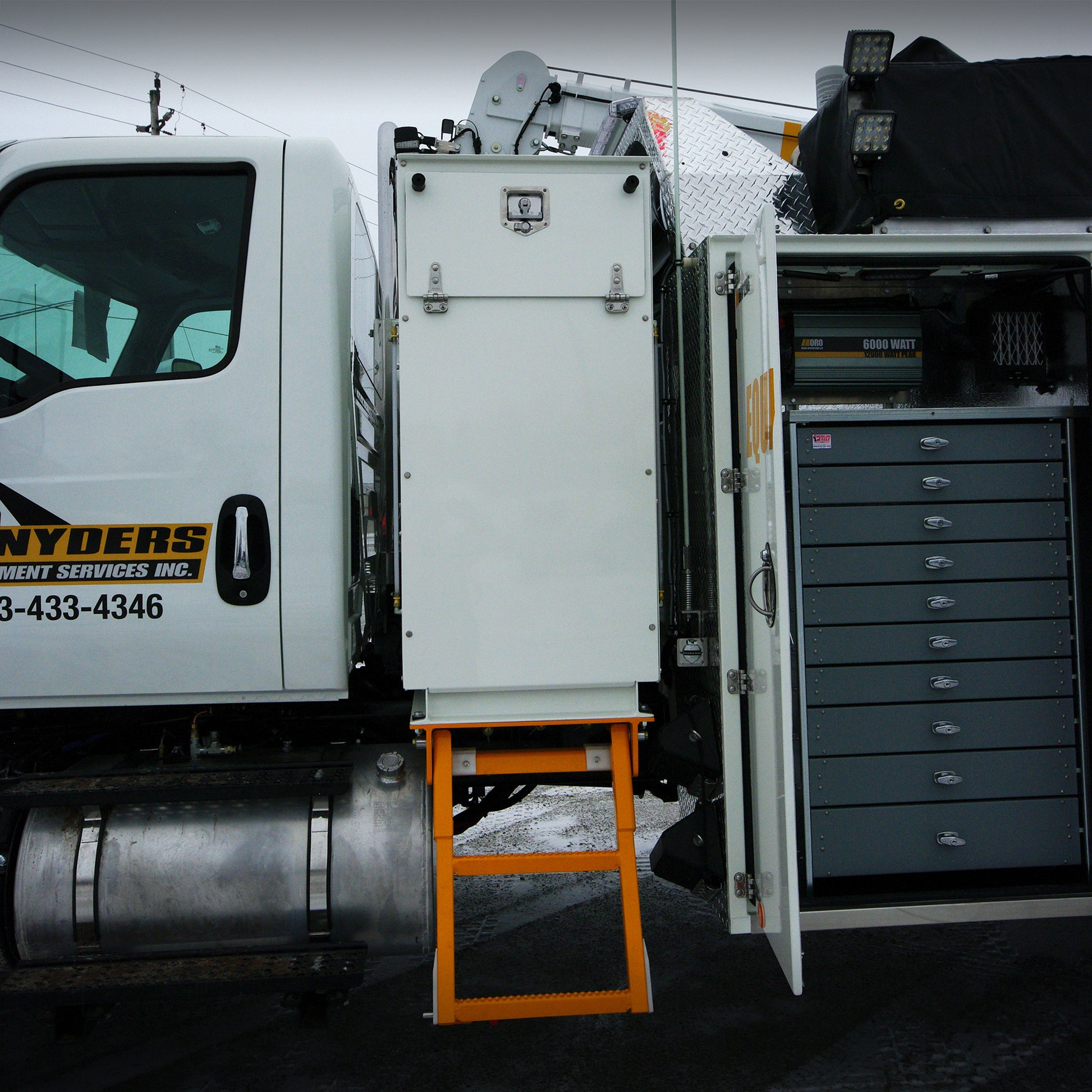

| Body Options | 12 gauge steel compartments with structural subframe Open or enclosed product tank storage area Folding tank access ladder |
||

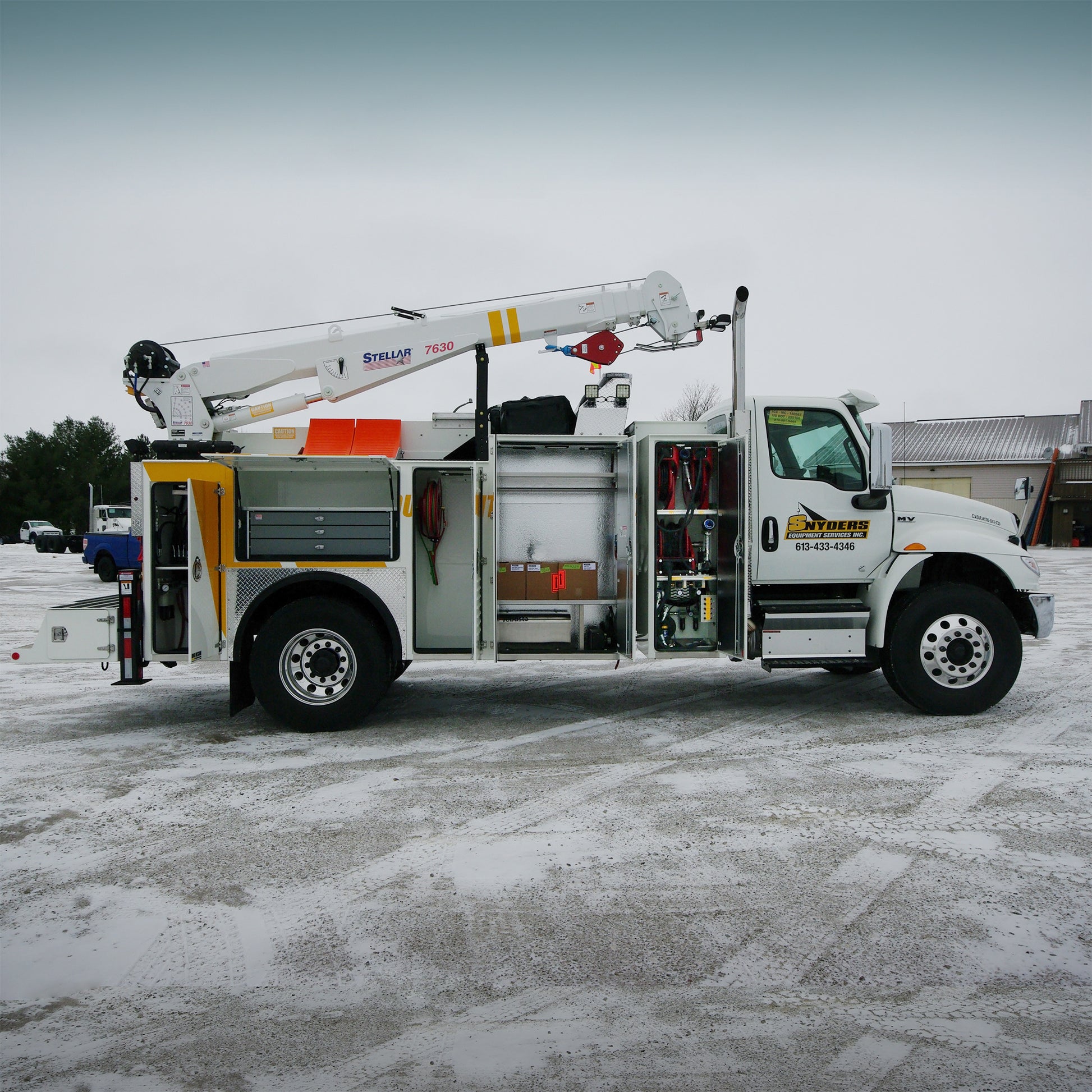

| Reel Module Options | Curb side or street side | ||
| Fluid Options | Fresh oil, waste oil, anti-freeze, grease, DEF | ||
| Power Options | Pump & PTO, Miller® EnPak (Air of Hydraulic), VMAC Multifunction | ||
| Fluid Pump Options | Air of hydraulic pumps | ||
| MIN GVWR | 19,500 lbs. | 26,000 lbs. | 33,000 lbs. |
